Wireless networking solution for self-service terminal of inquiry machine

The rapid development of science and technology has brought the public's life into the digital information era, and the application of inquiry machine is also increasingly widespread, which is gradually applied to all aspects of our daily life and work. Such as in the banking business hall, postal service hall, tax collection hall, urban streets, office buildings, airports, stations, banks, museums, libraries, exhibitions, hospitals, hotels and other places.

The inquiry machine self-service terminal is based on the Internet, wireless network and other platforms to provide the public with the latest information and other inquiries. Users can obtain detailed information through active click or scan and other functions. With its rich experience in the field of wireless communication of the Internet of Things and excellent industrial product quality, Shenzhen eTel Technology Co., Ltd. has established a good cooperative relationship with the query machine manufacturer, and has customized the wireless networking solution for the query machine self-service terminal. eTel 4G industrial router has been widely used in self-service terminal outlets of inquiry machines across the country in the past two years.

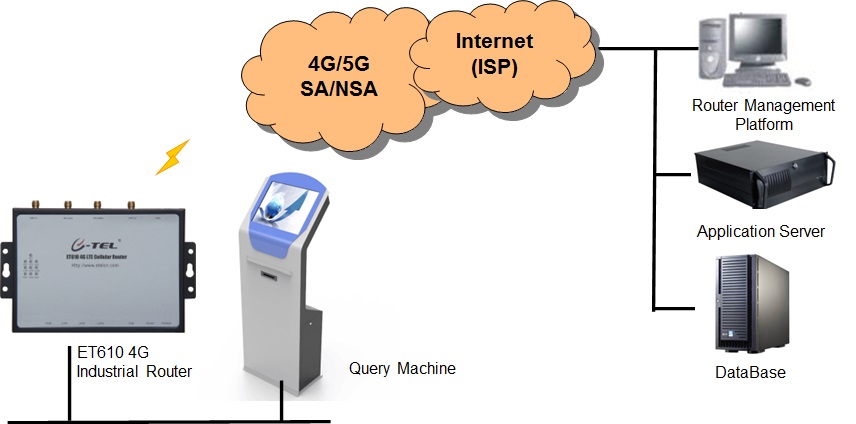

The wireless networking scheme of the inquiry machine self-service terminal of Shenzhen eTel Technology Co., Ltd. consists of three parts: inquiry machine, eTel ET610 industrial wireless router and back-end management platform. ET610 router accesses the Internet through wireless network and establishes VPN connection with the back-end management platform, so that the terminal inquiry machine and the management platform form the same network. The inquiry machine self-service terminal can directly communicate with the management platform server. The service data generated by the query machine will be directly transmitted to the management platform of the central server through the communication channel established by the ET610 wireless router and the central server.

   eTel ET610 router adopts high-performance industrial 32-bit communication processor and industrial wireless module, and has strong adaptability to working environment. The embedded real-time operating system is used as the software support platform, and four Ethernet LANs are provided at the same time, which can connect multiple Ethernet devices at the same time to achieve transparent data transmission and routing functions, with a high degree of intelligence, greatly reducing the workload of installation and maintenance, and saving costs.

eTel 4G Industrial ET610

Feature

·           Industrial Design, 7×24h Stable operation

ET610 4G LTE Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 4G LTE module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.

·           Transparent data transmission

4G LTE Router provides full transparent data transmission channel through RS232 interface it uses for connect different types of PLC, RTU which extend the scope of router application, and better services for users.

·           VPN private network access in

Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management and user identity authentication, guarantee the data transmission security

·           Multiple WiFi work mode

Router supports multiple WiFi work mode, such as AP mode, station mode, repeater mode.

·           Link detection

Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 4G network connect well.

·           Support data trigger online, idle offline

When there is no data transmission, router will automatically offline the 4G LTE network; when there is data request transfer, router will online 4G LTE network immediately. it is maximum save the data flow.

·           IP Video surveillance

4G LTE network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.

·           Failover or Backup between WAN and Cellular

4G industrial LTE router supports wired and wireless network backup each other, when the 4G LTE network fault, router can be automatically switch to WAN or WiFi interface for data transmission; when the wired WAN interface fault, router can be automatically switch to 4G LTE interface for data transmission.

·           Dual antenna design

Router 4G LTE part using dual antenna Main / AUX design, WiFi 2.4Ghz also uses dual antenna design, total 4 antennas to ensure signal sensitivity. optional for 5Ghz 802.11ac WIFI dual antenna.

·           External USB for disk

Router support external USB storage function, the user can remote access U disk or mobile hard disk through any browser.
