4G lottery machines Solution

In recent years, various sports activities and welfare undertakings in China have received more and more attention and attention. In order to raise social public welfare funds and promote the development of public welfare undertakings, sports and welfare lotteries have emerged as the times require. The lottery distribution network is developing day by day, the means of distribution are increasingly rich, and a large amount of funds have been raised, playing an increasingly important role in various public welfare social activities.

At present, the business center of the lottery and each business site use DDN or telephone line to transmit data. The single transaction flow of lottery business is very small. The monthly rent of DDN or IDSL special line is too high, and the data transmission by telephone line is charged by time, which brings a lot of inconvenience and costs are not cheap. Based on the above problems, Shenzhen Yitai Xintong Technology Co., Ltd. proposed a wireless networking scheme for lottery machines based on 4G/5G industrial routers.

System composition:

(1) Terminal betting machine: provide betting, cashing, query and other functions for lottery users

(2) Wireless communication terminal equipment: In view of the demand for the communication interface of the terminal betting machine, the ET610 wireless router of Itai Technology is selected. It has small size, low power consumption, simple configuration and use, and plug and play.

(3) Lottery center system: responsible for processing all kinds of data uploaded by each terminal betting machine and providing a service platform for the terminal betting machine.

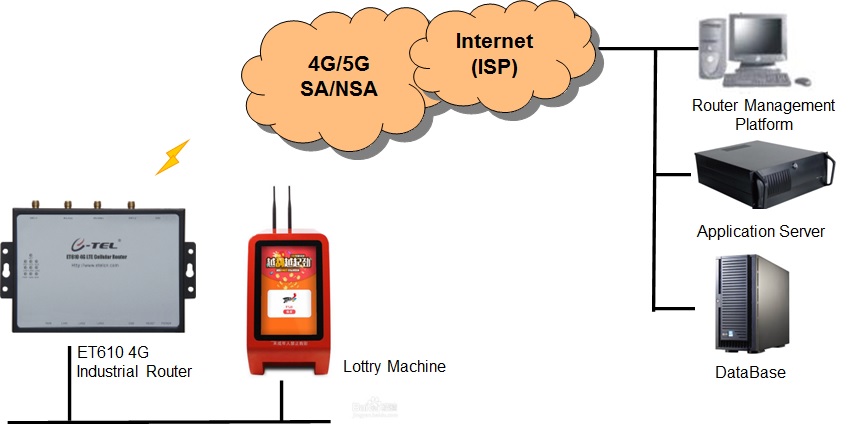

 The terminal betting machine is connected with eTel ET610 industrial router through Ethernet interface, and the lottery center system can use special line as network access mode. The industrial router ET610 is connected to the Internet through 4G/5G wireless network, and there are two networking methods to realize the connection between the terminal betting equipment and the lottery center system: first, VPDN private network or APN private network; Second, through VPN. After the terminal betting machine establishes communication connection with the central system, it can directly exchange data with the lottery central system server. The business data generated by the terminal betting machine is directly exchanged with the central server through the Etai ET610 industrial wireless router.

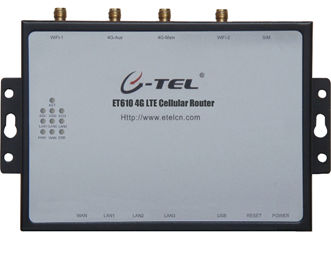

eTel 4G Industrial ET610

Feature

·           Industrial Design, 7×24h Stable operation

ET610 4G LTE Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 4G LTE module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.

·           Transparent data transmission

4G LTE Router provides full transparent data transmission channel through RS232 interface it uses for connect different types of PLC, RTU which extend the scope of router application, and better services for users.

·           VPN private network access in

Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management and user identity authentication, guarantee the data transmission security

·           Multiple WiFi work mode

Router supports multiple WiFi work mode, such as AP mode, station mode, repeater mode.

·           Link detection

Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 4G network connect well.

·           Support data trigger online, idle offline

When there is no data transmission, router will automatically offline the 4G LTE network; when there is data request transfer, router will online 4G LTE network immediately. it is maximum save the data flow.

·           IP Video surveillance

4G LTE network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.

·           Failover or Backup between WAN and Cellular

4G industrial LTE router supports wired and wireless network backup each other, when the 4G LTE network fault, router can be automatically switch to WAN or WiFi interface for data transmission; when the wired WAN interface fault, router can be automatically switch to 4G LTE interface for data transmission.

·           Dual antenna design

Router 4G LTE part using dual antenna Main / AUX design, WiFi 2.4Ghz also uses dual antenna design, total 4 antennas to ensure signal sensitivity. optional for 5Ghz 802.11ac WIFI dual antenna.

·           External USB for disk

Router support external USB storage function, the user can remote access U disk or mobile hard disk through any browser.
