Student Attendance Cloud System Platform
Student IN/OUT SMS&Email Notice; Based on eTel RFID series reader; Support C/S (Client), B/S(Broswer); Support Famer remote management; Support administrator assign rights; Support school/class assignment; Support third party SMS Gateway;
- Function
- Specification
- Typic application
1. Introduction
Safety and security of students is a greatest concern of any school management as well as parents of all students. This is why we have deployed RFID based Attendance System Solution to keep school management and parents aware about student’s current position while in transit and their arrival time at destination.
This system will facilitate the parents to keep track of their parents from their pickup points to school and school to drop point all times and monitors their status. RFID will help to take the attendance of students into the bus real time.
eTel RFID Student Attendance Cloud Platform includes Data Server platform and Reader. The data server platform is server PC which put on service center; the reader will install on each school gate and bus. Reader based on GPRS/3G wireless or wired IP network, send the data to server. it reaching for the remote RFID TAG data acquisition, storage, control, and thus all the RFID reader centralized monitoring and management, display operating status of each device, the alarm information, signal strength, unity and TAG information stored in an SQL database, support export reports in real time, easy for user to control the device and store the TAG data.
RFID Student Attendance Cloud Platform to store RFID TAG using SQL database, and supports 3 type of TAG ID format display, selectable as decimal (DEC), hexadecimal (HEX), ASCII code to display TAG ID number, provide export the TAG report as specified device, time period, meet the users special report requirements.
Student Attendance Cloud Platform supports both C/S (Client/Server) and B/S (Browser/Server, Web-based) structure; C/S is use for manage reader device, B/S is user for manage school, student, report etc. the Parents would receive student attendance SMS or Email everyday.

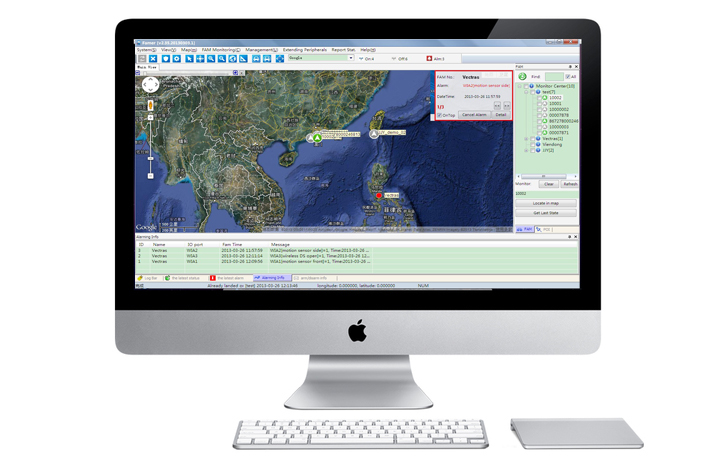

Reader management, Data Monitoring Centre (C/S):
Base on windows PC, through client software Famer, direct access to the data center server, 7 * 24-hour run. Support RFID reader remote control, parameter setting, status query, remote photograph, LED issue, Add/Remove reader, add/delete users, user authorization, statistics report etc., it's suitable for use as data monitoring center.

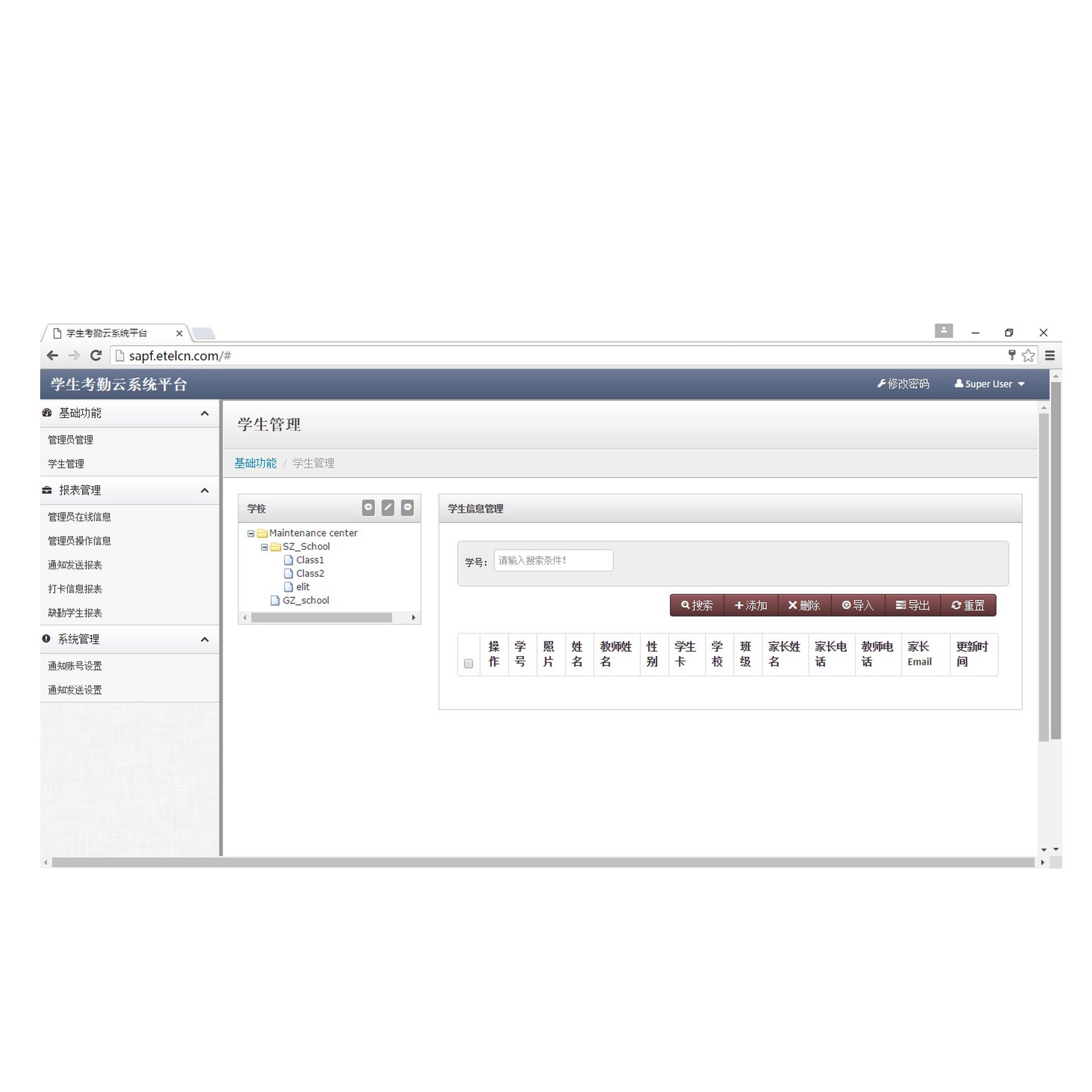

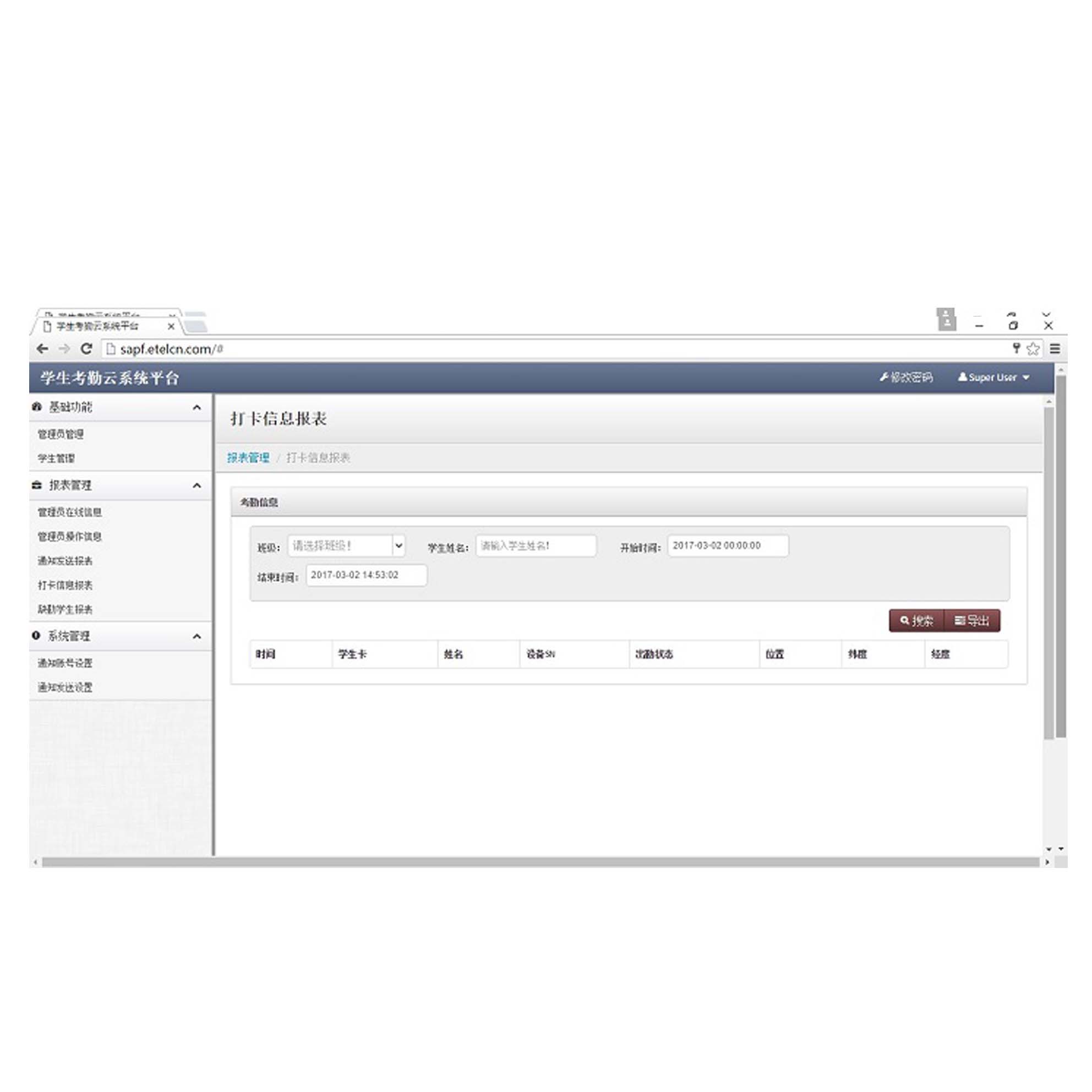

School, Student Management, TAG Data, Report (B/S):
User is able to directly through any browser to access the Student Attendance Cloud Platform WEB address, remote query the belong students attendance status, report, SMS&Email sent record. Administrator is able to add/delete users, user authorization, statistics report all function.
2. Main Feature
Real time monitoring of students IN/OUT school gate
Based on RFID, GPRS, IP, GPS technology, real-time monitoring of students IN/OUT of school, and send SMS&Email notification to parents.
Absence student notification
School attendance cloud system is not only able to view student IN/OUT of school status, and also send student absence notification to his parents via SMS & Email.
Supports both C/S (Client/Server), B/S (Browser/Server, Web-based) structure
RFID School attendance cloud system supports both C/S and B/S structure, suitable for the user management system on different occasions, the C/S client software Famer is good stability, full-featured, easy to operate, intuitive interface, suitable for data monitoring center 7*24-hour operations management. B/S browser is no limited on the operating system, no limited for terminal, without install software, real-time running, the user can through any PC, tablet PC, mobile phone to instant access RFID cloud platform, that's suitable for end-user control RFID Reader at any time.
Stable performance, support 10,000 Readers
Server is distributed system architecture, independent functional part operation, stable performance, the server supports 10,000 Reader running at the same time; when the reader exceeds the limit, just increasing server to approach the expansion.
Multiple report formats output
Cloud platform supports multiple report, includes student TAG report, absence student report, send log report etc. it can export the report in EXCEL format.
Support GPS
Student Attendance Cloud Platform support store the GPS coordinates information, when RFID reader (supports GPS function), the TAG data will be sent with the GPS information to the management platform at the same time, the platform will store the ID number + GPS information, so that in the report we can know the exact GPS location when user TAG. The platform support show the exactly location on Google map as well.
Support multiple languages
RFID cloud management platform supports English, Chinese, and can be customized language according to customer demand.
Remote configuration and control
C/S Famer management platform can remotely manage and configure reader, or even restart the reader, including: defense, not defense, view status, view the version information, set the port alarm value, restart etc.
Support third part SMS gateway
Student attendance management platform supports the third-party SMS gateway, just fill in the link address of the third-party SMS gateway, platform can send SMS out, thereby saving the cost of SMS. Follow the communication protocol of SMS gateway, we can integrate into the cloud management platform.
Student information management, Import/Export
Student attendance system platform support schools, class, student management, and support student information import/export function, it’s easy to organize a large number of student information.
Rights Management
Management platform support multi-polar rights management, general users can only operate their own school/class, Super users can assign administrative privileges to the specified user.
3. Software Module
Type | Module | Sub Module | Feature Description | Memo |
Operation Management | User | User management | Management of lower user information, support multi-level management, providing export and print functions | |
School | School management | Add, delete, backup school information | ||
Class | Class management | Add, delete, backup class information | ||

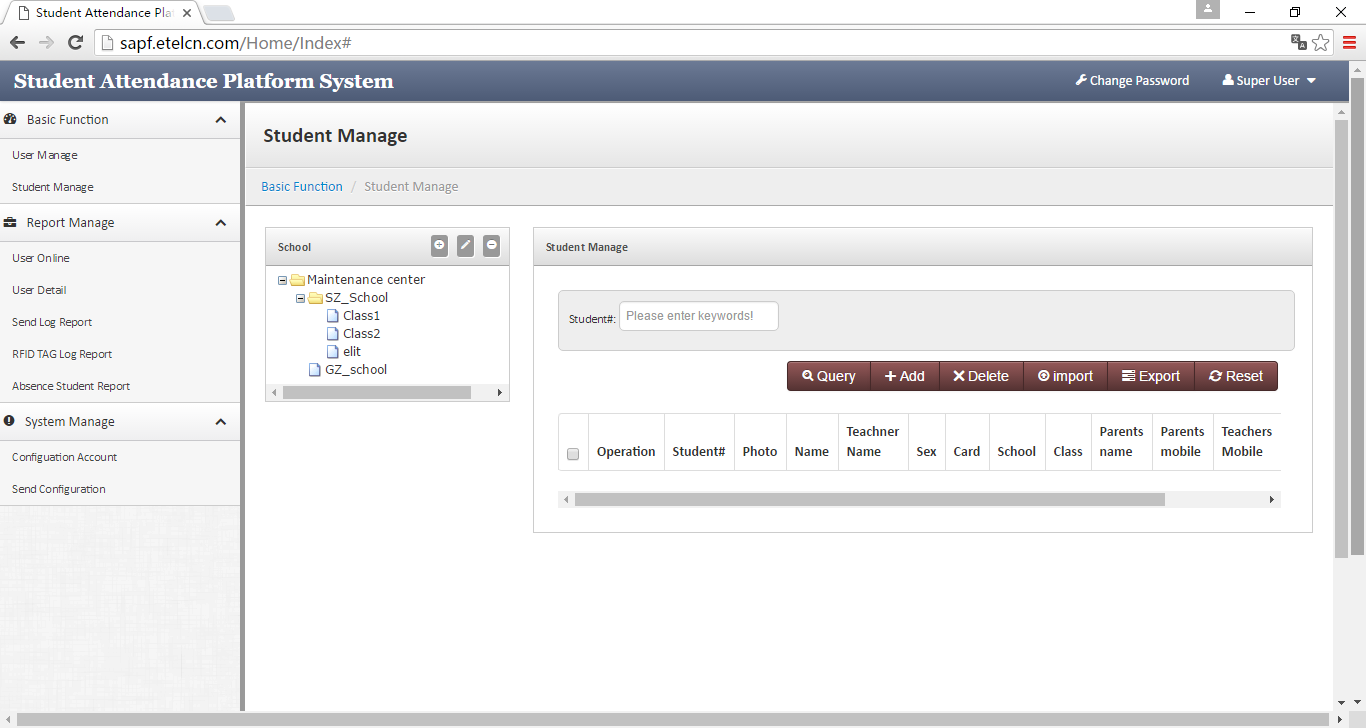

Student | Student management | Add, delete, import/export student information | ||
System Management | SMS | SMS gateway Setting | SMS gateway link address, user, password setting | |
Email gateway setting | Email gateway server, user, password setting | |||
Notice | Notification Setting | Arrival, leave, absence notice content setting | ||
Send by Manual | Manual send content | Manual sent SMS Email | ||
Statistics Center | User report | User online | Provide user online time, login time information | |
User Operation | Provide user operation type, time information | |||
Send log | Send log report | Platform send SMS & Email record | ||

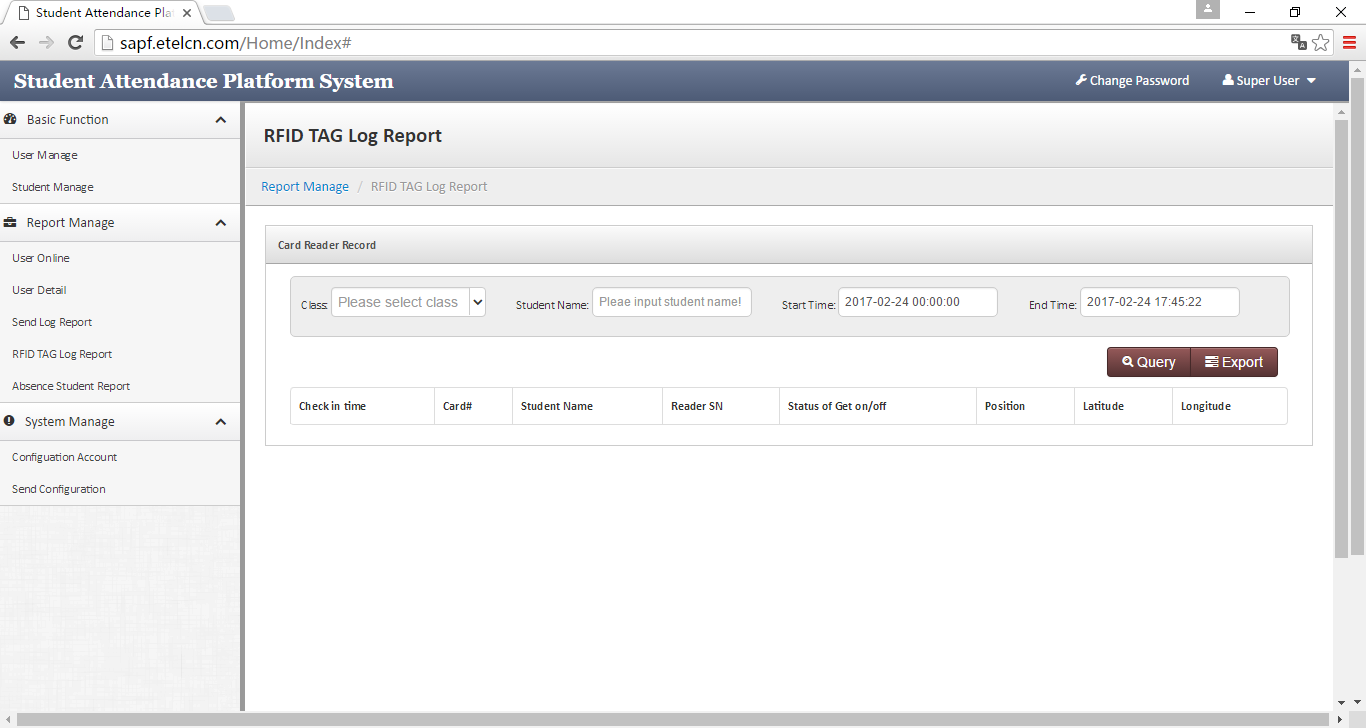

TAG Log | Student TAG | Student IN/OUT school gate record | ||
Absence report | Absence student | Absence student record | ||
4. Server requirements
• Windows 2008 R2 or above
• IIS7.0 or above
• SQL 2008 or above
• My SQL
• VPS Server or Standard PC Server
5. Demo account
http://sapf.etelcn.com
User: demo
Pass: demo
