Famer Cloud System Management Platform
GPRS FAM Management; Embedded Google Map; Support C/S (Client), B/S(Broswer); Statistical reports export; SMS and email forwarding; Support issue LED advertisement; Support camera for photograph;
- Function
- Specification
- Typic application
1. Introduction
eTel FAM cloud management platform is based on current demand for centralized monitoring and management of GPRS FAM to developed centralized management platform, the system provide remote data acquisition, remote control . It make all the FAM, user equipment and sensors fully integrated, centralized monitoring and management, and it can display the operational status of each device, alarm information, current sensor status, maximizing user-friendly remote control device.
eTel FAM management platform let users just monitor all the FAM in the control centers, the system show FAM location on GOOGLE map, if there is alarm happen, the system will immediately locate FAM on GOOGLE map, and show red color logo flash and alarm content on FAM. It’s user-friendly, fast and accurate processing of alarm status.
FAM cloud management platform supports both C/S (Client/Server) and B/S (Browser/Server, Web-based) structure; users can simultaneously through the PC, MID, cellphone to access.

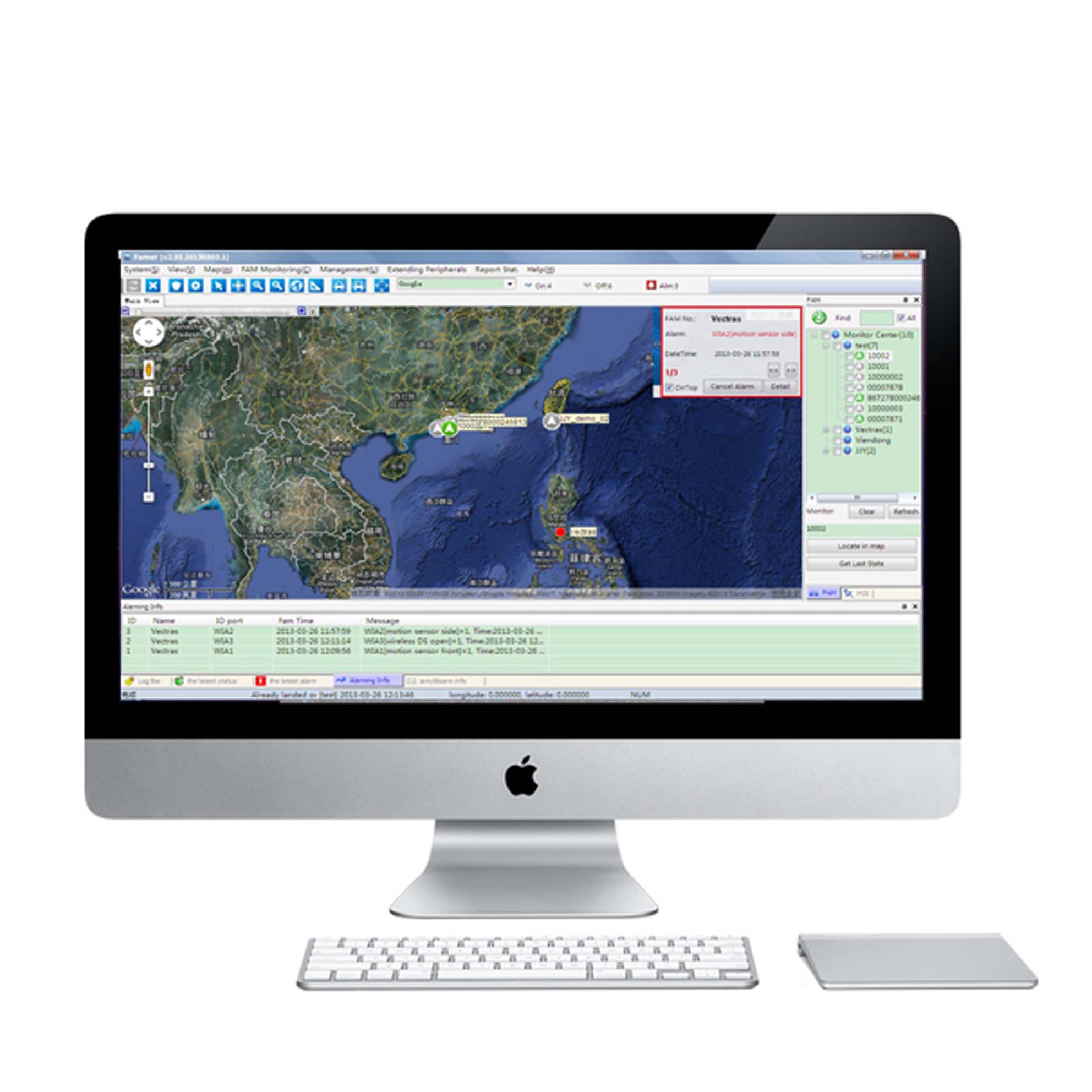

Data Monitoring Centre (C/S):
Base on windows PC, through client software Famer, direct access to the data center server, 7 * 24-hour run. Support FAM remote control, parameter setting, status query, remote photograph, LED issue, Add/Remove FAM, add/delete users, user authorization, statistics report etc., it's suitable for data monitoring center.

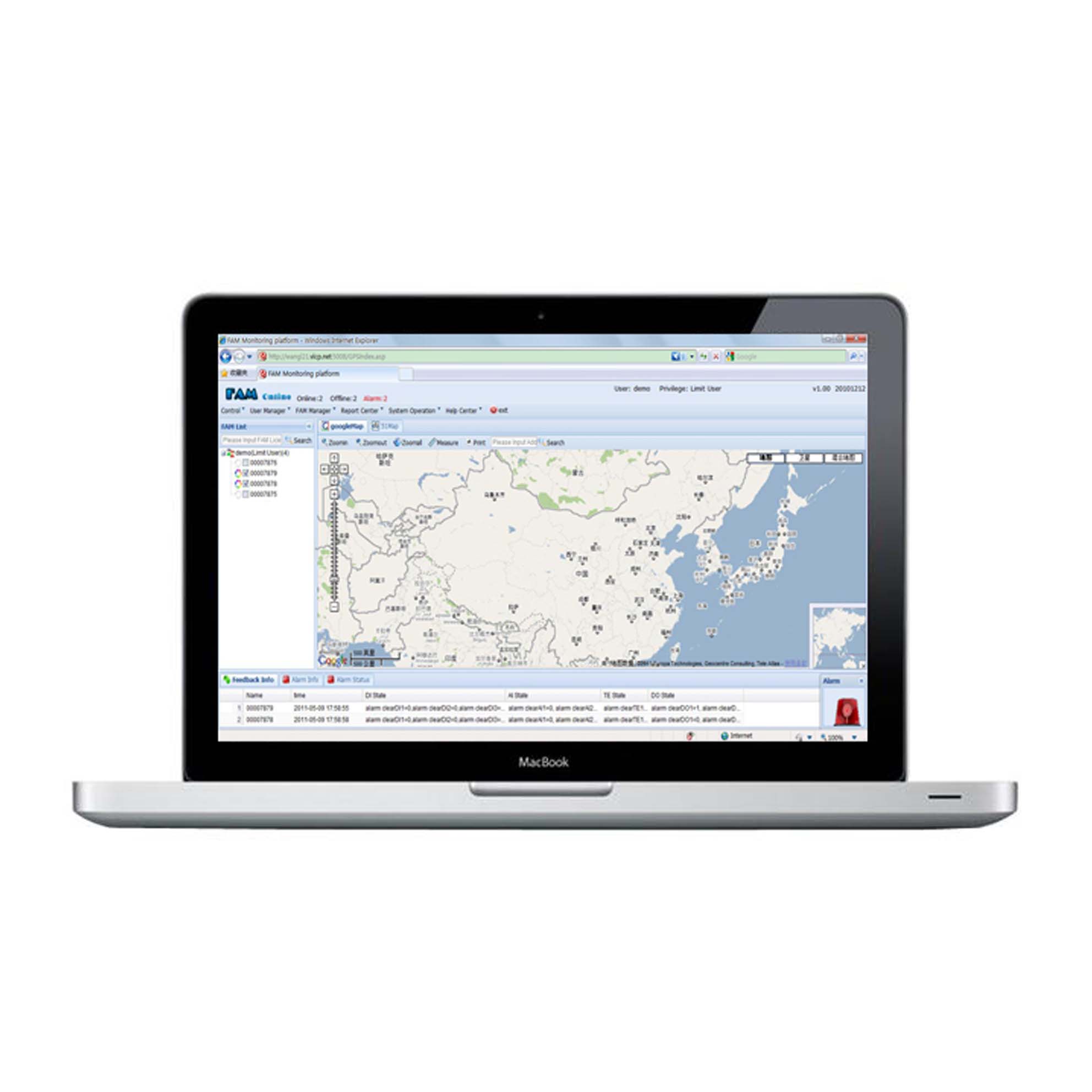

User PC (B/S):
User PC is able to directly through any browser to access the cloud management platform WEB address, remote query/the control the belongs FAM. Support FAM remote control, parameter setting, status query, remote photograph, LED issue, Add/Remove FAM, add/delete users, user authorization, statistics report etc., also we can use Famer client software (C/S) direct access to the data center.

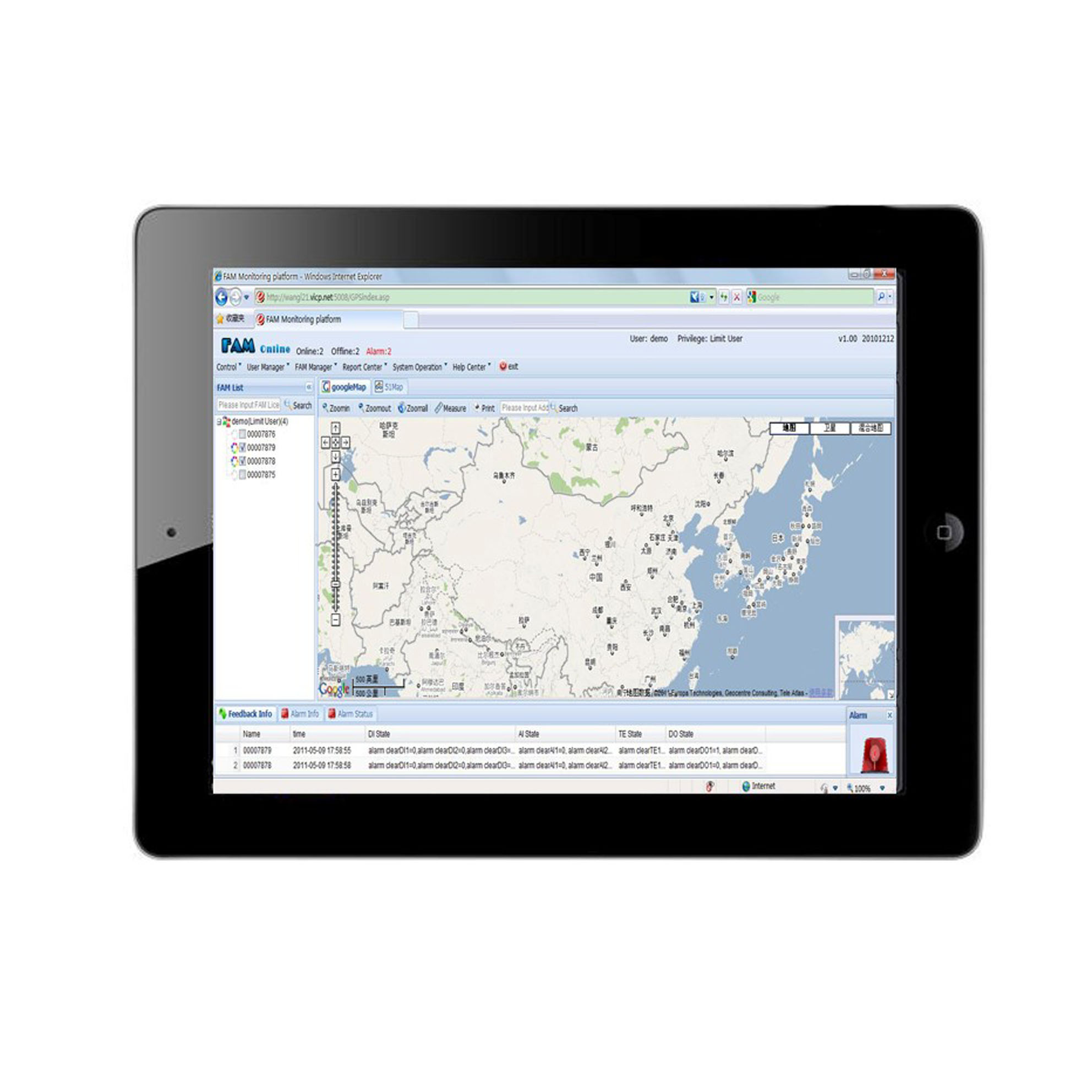

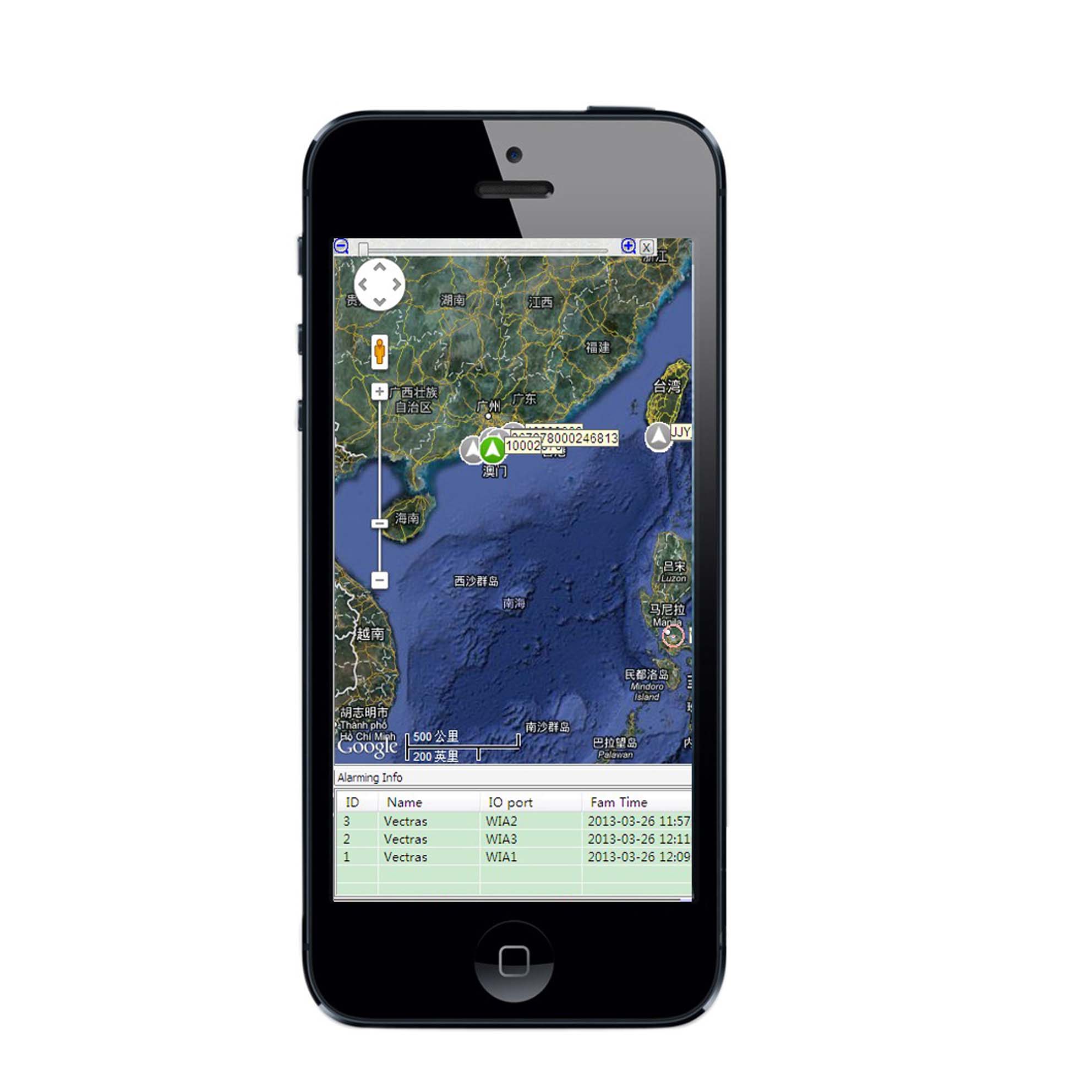

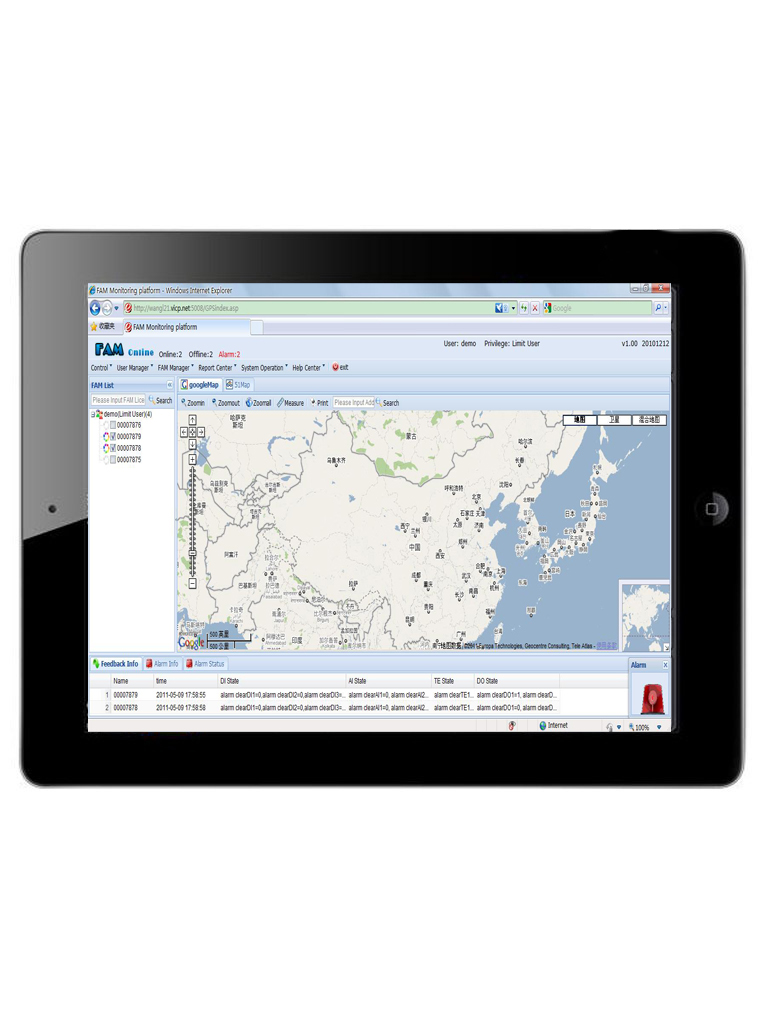

Tablet PC and mobile phone (B/S):
Users of tablet PCs and mobile phones (including IOS and Android system), can be directly through any browser to access cloud systems management platform web address, remotely query/control belongs FAM. Support FAM remote control, parameter setting, status query, remote photograph, LED issue, Add/Remove FAM, add/delete users, user authorization, statistics report etc., it’s suitable for end-user control belongs FAM at any time.
2. Main Feature
Supports both C/S (Client/Server), B/S (Browser/Server, Web-based) structure
FAM cloud systems management platform supports both C/S and B/S structure, suitable for the user management system on different occasions, the C/S client software Famer is good stability, full-featured, easy to operate, intuitive interface, suitable for data monitoring center 7*24-hour operations management. B/S browser is no limited on the operating system, no limited for terminal, without install software, real-time running, the user can through any PC, tablet PC, mobile phone to instant access FAM cloud platform, that's suitable for end-user control FAM terminal at any time.
Stable performance, support 10,000 FAMs
Server is distributed system architecture, independent functional part operation, stable performance, the server supports 10,000 FAM running at the same time; when the FAM exceeds the limit, just increasing server to approach the expansion.
Support multiple languages
FAM cloud management platform supports English, Chinese Simplified, Chinese Traditional, and can be customized language according to customer demand.
Real-time query FAM running status and port information
Just choose an FAM, and click mouse to query FAM location and current I/O port information. Location information includes latitude and longitude, I/O port status information includes DI, AI, TE, DO port information.
Customize alarm information
For easy to read alarm information, platform software supports customize alarm message. Users can pre-define alarm message for each port alarm on the software, when the alarm is occurred, platform software will display the pre-defined content at same time, user will easy to read the alarm message.
Alarm Status Bar
When the alarm occurred, the control center will automatically locate the alarm FAM on Google map, show as red blinking logo, and display the alarm detail information on the alarm status bar; when the alarm clear, platform will delete the alarm message on the alarm status bar.
Remote configuration and control
Management platform can remotely manage and configure FAM, or even restart the FAM, including: defense, not defense, view status, view the version information, set the port alarm value, restart etc.
Support for UDP and TCP
Management platform supports both UDP and TCP communication mode, the user can according the network situation to choose mode to connect with FAM.
Support camera/LED
FAM support issue information to remote LED display, through management platform to real-time refresh LED screen display content; Support camera photograph function, management platform is able to take picture for alarm trigger or time interval.
SMS and EMAIL Forwarding
Management platform can forward the alarm and alarm clear message via SMS and Email. So it's not necessary to view platform software for 24-hour, when the alarm occurs, Platform software will forward the alarm message to pre-set cell phone via SMS automatically, user can receive the alarm message immediately, and also through the browser to check and confirm the alarm details at same time.
Reporting and Statistics
All data of platform has been saving into SQL database, users may call data to generate different types of reports according to the needs, such as: alarm report, offline FAM report, statements, alarm clear report, day/month/year reports, etc., after generated the report, user can instant export data to the EXL file as well.
Rights Management
Management platform support multi-polar rights management, general users can only operate their own FAM, limited user only views the FAM, and they cannot remote control FAM.
Google map
Management platform using Google Map and Mapinfo map to displayed FAM position, when the user add FAM, just enter the latitude and longitude information, FAM will display on the map location exactly.
Easy operation
Management platform support the C/S and B/S structure, operation and management is very convenient, simple; users can access management platform through any PC, tablet PC, mobile phones.
3. Software Module
Type | Module | Sub-Module | Function Description | FAM Function | ||
System Management | Log | Provide Important system operation log records and management | ||||
Universal dictionary | Provide systems used in the management of all common dictionary table | |||||
Provinces dictionary | Management provinces dictionary table | |||||
City dictionary | Management city dictionary table | |||||
Town dictionary | Management town dictionary table | |||||
Operation Management | User Management | User Info Management | Management of lower user information, support multi-level management, providing export and print functions | |||
FAM Management | FAM info Management | Management FAM information, provides export and print function | ||||
FAM Maintenance | Management FAM Maintenance information | |||||
SIM Management | Management FAM SIM card information, provides export and print function | |||||
Person Management | Management FAM relate person, operator information, provides export and print function | |||||
Role management | Management The role of information and rights | |||||
Account Management | Manage user account information and the corresponding subordinate role | |||||
FAM distribution | or ordinary users can monitor the distribution of its FAM | |||||
Monitoring Center | FAM Information | Query display FAM detail | ||||
Remote Setting | Set terminal parameter | Parameter setting | ||||
Terminal Control | Restart | Issued Restart command | Control FAM | |||
DO Port | Issued Control DO port command | |||||
Temperature Monitoring | Temperature | Issued temperature upper/lower limit command | Temperature Monitoring | |||
DI port monitoring | DI port | Issued command to set DI port alarm status | DI port monitoring | |||
Area search | Range of FAM data query | |||||
Real time alarm | Provide real-time alarm and terminal fault sound and light alarm | Alarm process | ||||
Alarm process | Clear alarm | Remote clear alarm function | ||||
Alarm process | Provided alarm process record | |||||
Alarm notice | Provided alarm automatic or manual switch to phones | |||||
History alarm | Provides functions to query the historical alarm | |||||
Information Dispatch | Information receive and send, provide information module to pre-set | Information Dispatch | ||||
Photograph | Alarm trigger photograph | Real-time photograph monitoring | Photograph monitoring | |||
Picture browser | Provide history photograph data for query and browser | |||||
LED issue | Real-time issue information to LED screen | LED Issue | ||||
LED issue history | Query history LED issue information | |||||
Map operation | Zoom out | |||||
Zoom in | ||||||
Maps Tour | ||||||
Measure Distance | ||||||
Measure size | ||||||
Eagle Eye | ||||||
map engine | Support the self-developed engine map | |||||
POI | POI add, modify, delete and share | |||||
Statistics Center | Traffic | Traffic | According data type to group statistics | |||
Traffic report | Provided data detail statistics | |||||
Out of control | Provided long time offline FAM statistics | |||||
Online | Provided current online all FAM statistics | |||||
Alarm statistics | Alarm | Provided DI, AI, TE port alarm statistics | ||||
Day | Provided day alarm statistics | |||||
Month | Provided month alarm statistics | |||||
4. Server requirements
• Windows 2008 R2 or above
• IIS6.0 or above
• SQL 2008 or above
• VPS Server or Standard PC Server
