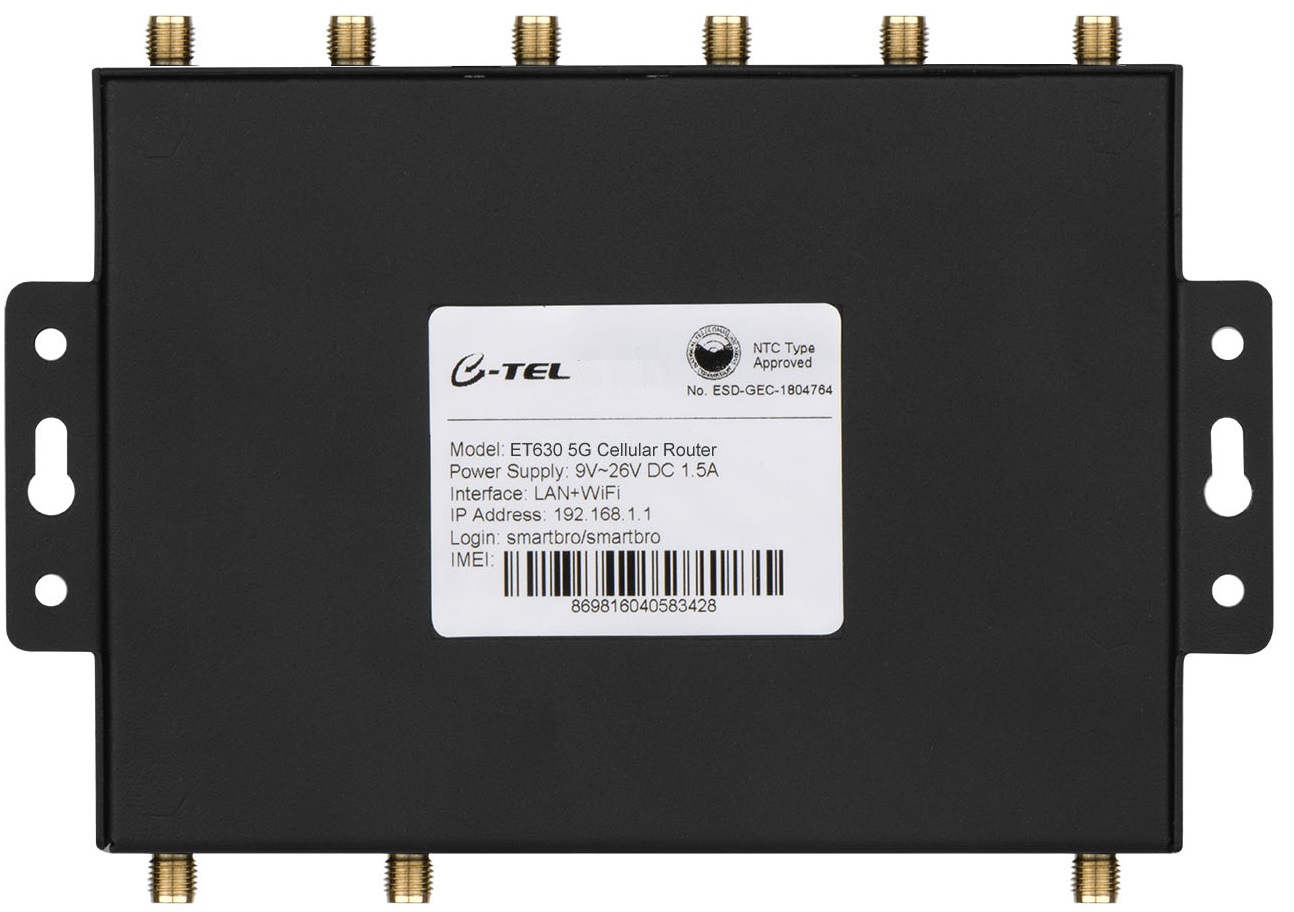

ET630-5GT7 5G Dual NR Industrial Cellular Router

1. General

ET630-5GT7 5G industrial cellular router is a router terminal device which based on 2/3/4/5G WCDMA, LTE, 5G NR wireless network, provides fast and stab network for end user. It's widely used in vehicle WiFi, bus WiFi, financial networking, security monitoring, water monitoring, smart grid, environmental monitoring, advertising, industrial control, weather monitoring, instrumentation, and other industries.

ET630 5G Industrial router is specialize in the field of industrial control, which based on 5G Cellular technology, it using high-performance processor and embedded OS system, industrial grade material design, suitable for high temperature, humidity, vibration, electromagnetic interface, and other harsh environment, it also supports APN/VPDN network access, multiple encryptions, mutual backup to guarantee the data transmission security.

2. Feature

· Industrial Design, 7×24h Stable operation

ET630 5G Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 5G Cellular module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.

· Dual SIM design

ET630 Router Provides Dual SIM slot, supports primary/backup switching mode, and mutual backup mode.

· Support TR069

ET630 supports TR069 management protocol, allowing ACS to easily manage all devices and achieve remote device monitoring, configuration, and other functions.

· M2M Cloud Platform

ET630 router supports the ETEL M2M cloud management platform, which can intuitively realize the online/offline status of the router, remote parameter configuration, FOTA software air upgrade, CSQ signal strength monitoring, etc.

· Support Web HTTPS

ET630 support Web HTTPS, it uses SSL/TLS for data encryption, providing a more secure data transmission channel than HTTP.

· Support IPv6

ET630 fully supports IPv6 protocol, and cellular network, WiFi, and LAN all support IPv6.

· WiFi 6 AX3000 and support setting max stations number

ET630 Router provides 802.11ax WiFi 6 AX3000, dual band 2.4G/5.8G. it supports up to 512 WiFi user connections. 256 units each for 2.4GHz and 5.8G, and supports setting the max number of WiFi users.

· Vehicle Power Protector

Based on the characteristics of the vehicle power supply, the router specifically adds a power protection circuit to protect the circuit from static electricity and transient high voltage impact.

· Dual firmware and Dual Configuration backup

ET630 5G Industrial router supports dual backup of firmware and configuration files, which can automatically detect and restore data from the backup area when external factors cause data damage.

· Band Lock

ET630 5G Industrial router support 4G/5G band lock function, customer can lock the assign band for more fast speed of internet.

· Link detection

Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 5G network connect well.

· IP Video surveillance

5G network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.

· Gigabit Ethernet port

The router supports 4 Gigabit Ethernet ports, 1 WAN/LAN and 3 LAN interfaces to ensure high-speed data transmission requirements under 5G cellular networks.

· 5G Support both NSA and SA modes, and Dual NR

5G Router support both NSA and SA mode on the 5G network, worldwide applications.

· VPN private network access in

Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management, and user identity authentication, guarantee the data transmission security
